Common Upgrades
15 Inch HMI Upgrade

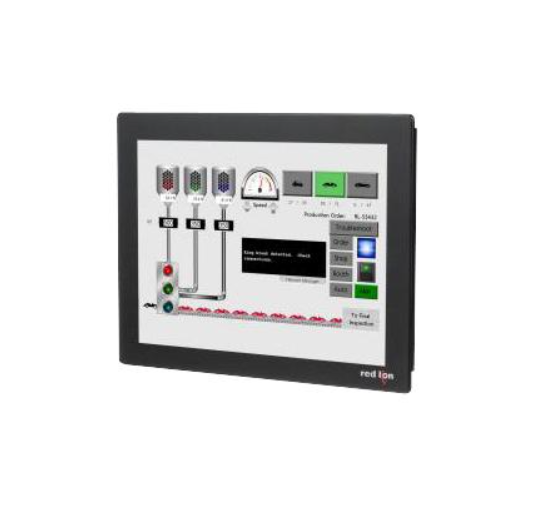

The Red Lion 15-inch industrial HMI operator interface features a 1024x768 pixel, 16-million-color touchscreen display. This model includes robust connectivity with two Ethernet ports, four serial ports, and multiple USB ports. Built for harsh environments, it has an IP66 NEMA 4X front panel rating and features protocol conversion for over 300 industrial protocols, built-in data logging, and an integral web server for remote access.
Key Differences: Display Size & Resolution: The 10.4-inch version uses an SVGA display with an 800 x 600 pixel resolution. The 15-inch model steps up to a larger XGA display featuring a higher 1024 x 768 pixel resolution, providing significantly more screen real estate for complex industrial graphics.
- ITEM #: CR3000-15000-00420
Swivel System for HMI

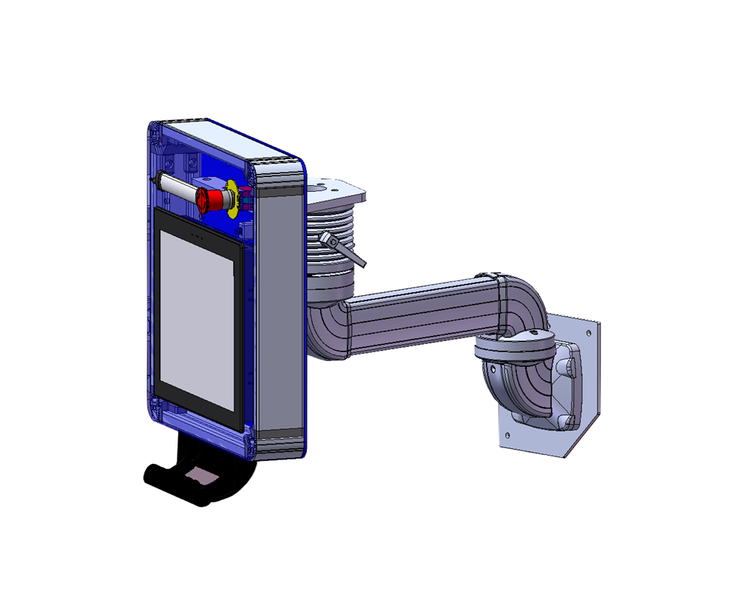

Key Differences: Upgrade from the standard fixed fence-mounted HMI to an industrial articulating support arm system. The operator interface is mounted on a heavy-duty swivel arm anchored to the cell framing, allowing the screen to be repositioned, angled, or stowed flat against the fence line as needed. The arm system is rated for continuous industrial use and includes rotation stops to prevent cable strain. The HMI enclosure can be designed to include an emergency stop and an indicator light for at-a-glance cell status directly at the operator station.
Benefits include:
- Improved ergonomics — position the screen for comfortable viewing at the load station rather than a fixed height and angle.
- Better accessibility during setup and maintenance — rotate the HMI toward technicians working at the cell.
- Reduced glare — adjust the viewing angle to suit lighting conditions.
- Clear load path — swing the enclosure out of the way of part loading and door swings.
- Clean cable management — all wiring is routed internally through the arm, protected from snags and weld spatter.
Cognex Vision View Web Panel HMI

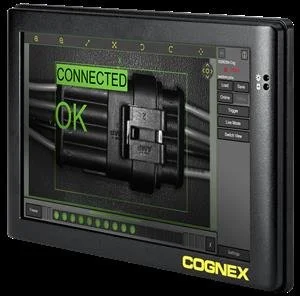

Vision View Web Panel is a 9-inch (229mm) touch screen and allows operators to load jobs, adjust tool parameters and regions of interest, and see inspection results on the factory floor without a PC. This includes a basic control enclosure (not dust/ingress proof) that mounts to existing fence. Does not include pedestal. If supplying to customer as stand-alone, customer is responsible for mounting.
Includes:
- Power supply and region specific plug for US.
- 2 USB ports for connecting a mouse or keyboard, or storing images and jobs on a removable drive.
- Connect and monitor up to 4 systems simultaneously.
- Enclosures, Cables, Etc.
SCARA iPendant with Touch Screen

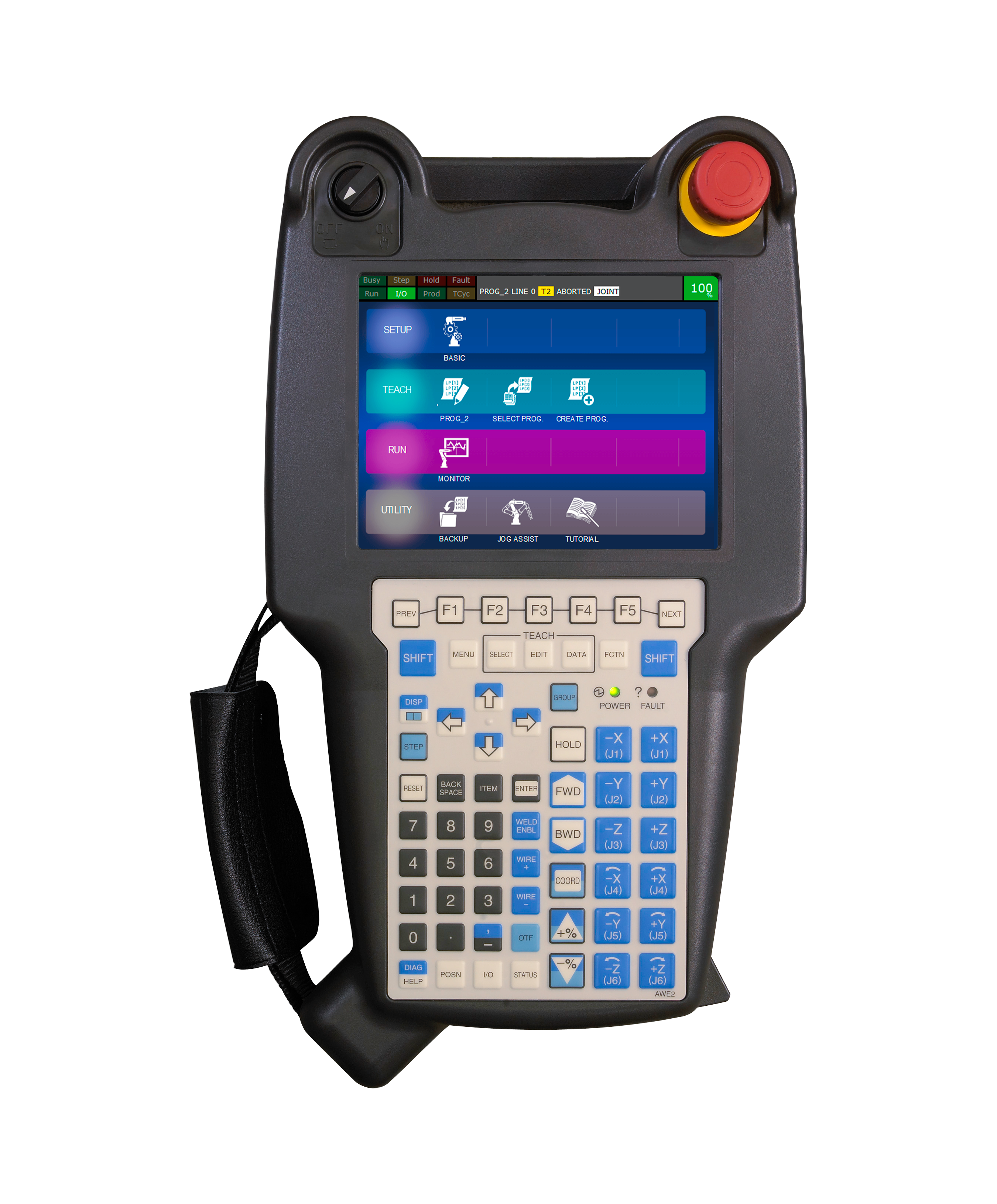

The iPendant Touch is a lightweight, ergonomic control device with an intuitive iHMI interface that simplifies programming for both experienced users and on-site operators. It boosts efficiency by streamlining setup and maintenance, supports custom HTML screens, and delivers advanced 4D visualization of tools, frames, safety zones, and robot paths. Its multi-window display enhances access to critical information, making it a powerful solution for modern automation.
This package includes a Fanuc iPendant (Teach Pendant) with Haptic Touch Screen and 10m TP cable.
Teach Pendant Extension Cables
The FANUC industrial teach pendant extension cables are designed to connect
FANUC teach pendants to R-30iA, R-30iB, and A05B-2256 series robot
controllers, providing reliable data and power transmission for automated
environments.
They're offered in 10 or 20 meter lengths:

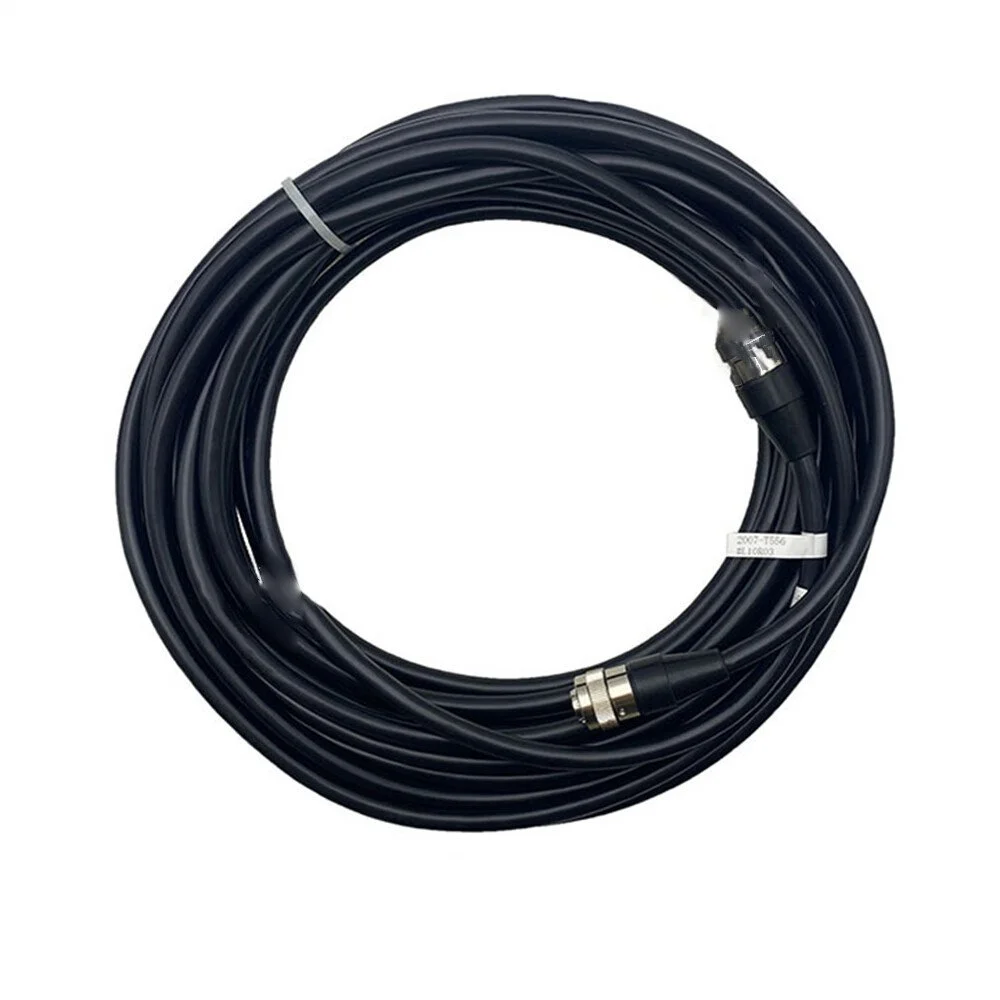

- ITEM #: A660-2007-T556#L10R03
- ITEM #: A660-2007-T556#L20R03
Example

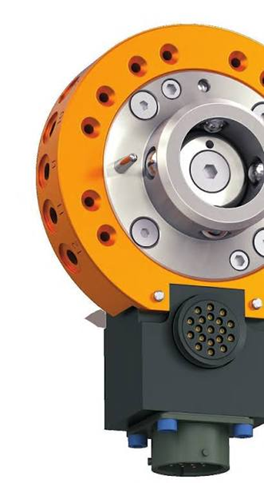

Automatic Tool Changer
For Small & Medium EOA Tools — Includes:
- Pass through air.
- Pass through electrical for position switches.
- Adapter plate for 1 or more additional tools.
- Holder and mount.
- Precision location fixture.
- Additional programming.
Lincoln Electric Positioner Upgrade
Choose between:

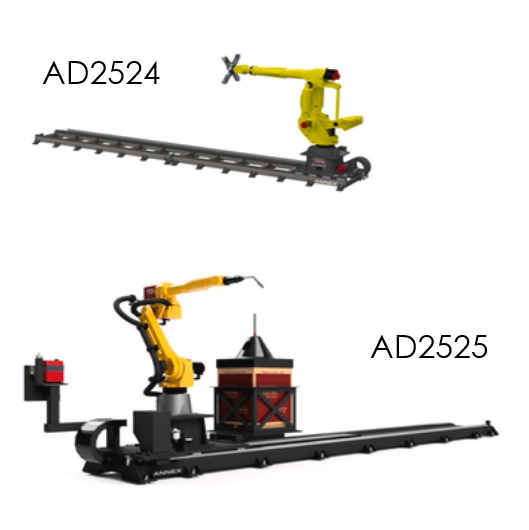

- AD2524: ANNEX® Material Handling Robot Transfer Unit Positioner. This modular, easy-to-assemble track design accelerates the productivity of your automated manufacturing processes. The ANNEX® Material Handling Robot Transfer Unit (RTU) positioner accommodates the FANUC® R2000 or M900 family of robots.
- AD2525: ANNEX® Arc Welding Robot Transfer Unit Positioner. This modular, easy-to-assemble track design helps accelerate the productivity of your manufacturing processes. The ANNEX® Arc Welding Robot Transfer Unit (RTU) positioner accommodates FANUC® ARC Mate® Robot Series 100, 120, M710, and comparable robot brands.
Includes:
- Single Axis Hollow Shaft Positioner with 5000kg Capacity.
- Large Servo Motor and Drive. Brushless servomotor with keyed shaft and brake, encoder, 5-meter cable, position indexer servo drive, and ethernet I/P communication.
CompactLogix PLC Upgrade
The Allen-Bradley CompactLogix 5380 Programmable Automation Controller (PAC) manufactured by Rockwell Automation. It is a mid-range controller designed for small-to-medium industrial applications that require high-speed control, enhanced security, and scalable local I/O.
- ITEM #: 5069-L306ER
Fortress Lock and Key
A heavy-duty modular safety interlock and guard locking system component from Fortress Interlocks, designed for industrial machine access and safety compliance.
Fanuc Recommended Training
-
2 Days (16 Hours)
Designed for operators that need introductory knowledge to interact with the robot.
Students learn to:
Power up and jog the robot
Execute Teach Pendant Operations
Understand Frames
Execute production operations
Modify and execute a material handling program
Backup programs and files
-
4 Days (32 Hours)
Designed for operators, technicians, engineers, & programmers who need to set up, record and/or troubleshoot programs on a FANUC Robot using HandlingTool Software.
Students learn to:
Power up and jog the robot
Define Cartesian Coordinate Frames
Recover from common program and robot faults
Execute production operations
Create, modify and execute a material handling program
Create and use position offsets
Create and execute MACROs
Monitor, force and simulate input and output signals
Backup and restore individual programs and files
-
5 Days (40 Hours)
Designed for operators, technicians, engineers, & programmers who need to set up, record and/or troubleshoot programs on a FANUC Robot using ArcTool Software.
Students learn to:
Everything included in HandlingTool AND
Utilize weld procedures
Utilize weld process schedules
Utilize ramping
-
3 Days (24 Hours)
Designed for operators, technicians, engineers, & programmers who set up, teach, test, and modify 2D iRVision applications and processes on an R-30iB PLUS Robot Controller.
Prerequisites: Completion of a live, FANUC instructor-led Operation and Programming course.
View and/or change robot and computer parameters to facilitate access to the robot's web page
Setup a camera
Perform an inspection vision process
Understand basic vision concepts and lighting
Master a robot using vision mastering
Create a tool frame for the robot applicator
Create user frames necessary for use with the vision system
Calibrate a camera
Setup a 2D single-view vision processes
Program the robot to respond to vision results
-
5 Days (40 Hours)
Designed for technicians, engineers, & programmers, this course covers advanced programming concepts for those who need to develop more complex scenarios on robots with a Tool application software.
Prerequisites: Completion of a live, FANUC instructor-led Operation and Programming course.
Create User and Tool Frames
Manipulate programs using:
Tool Offset Function
User Offset Function
Program Shift Utility
Program Adjust Utility
Set Robot Payload using Payload ident.
Setup Collision Guard.
Setup Config Screen Items
Create Mixed Logic Instructions
Execute Programs in Background Logic
Program with Flags and Markers
Utilize User Operator Panel I/O
Start Production via PNS, RSR, STYLE and/or OTHER
Setup Pre-Production Checks
Identify Program Development Issues
