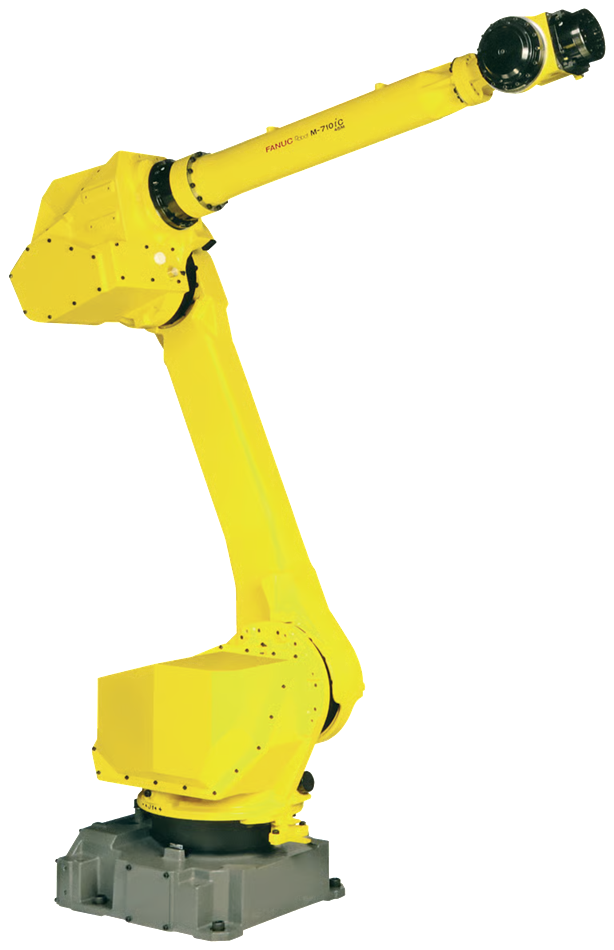

FANUC M-710iC/45M

Medium payload robot, 6-axis configuration.  Used for medium duty applications that require longer arm reach.

Reach - 2606mm
Load capacity - 45kg

Increased work envelope - Offering that extra bit of reach, the long arm on this model makes it suited to handling pallets across a larger work area.

Compact design - The slim body and compact wrist provide maximum flexibility across a range of applications where space is an issue. Multi-direction operation is provided by a full 360 degrees of rotation from J1.

Inverted mounting available - Floor, upside down and angle mounting options for maximum flexibility.

Perfect for:

Machine tending
High speed operations
Material handling applications

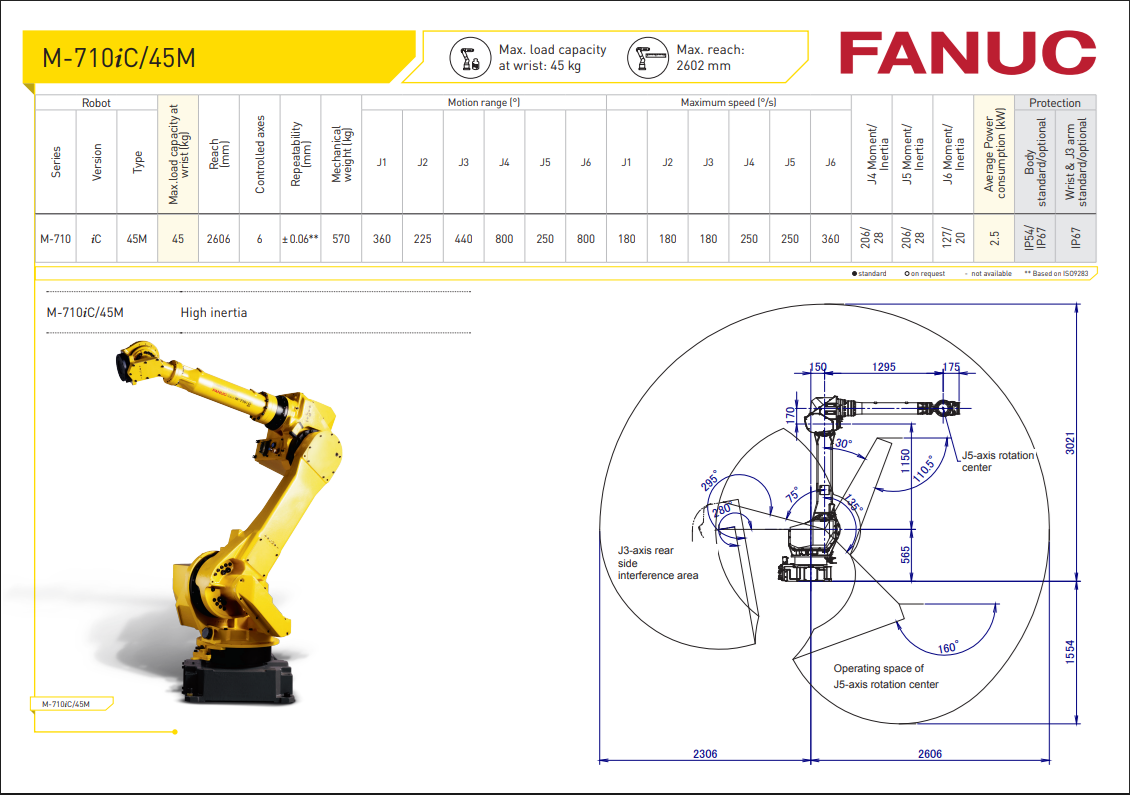

DATASHEET

M-710iC/45M

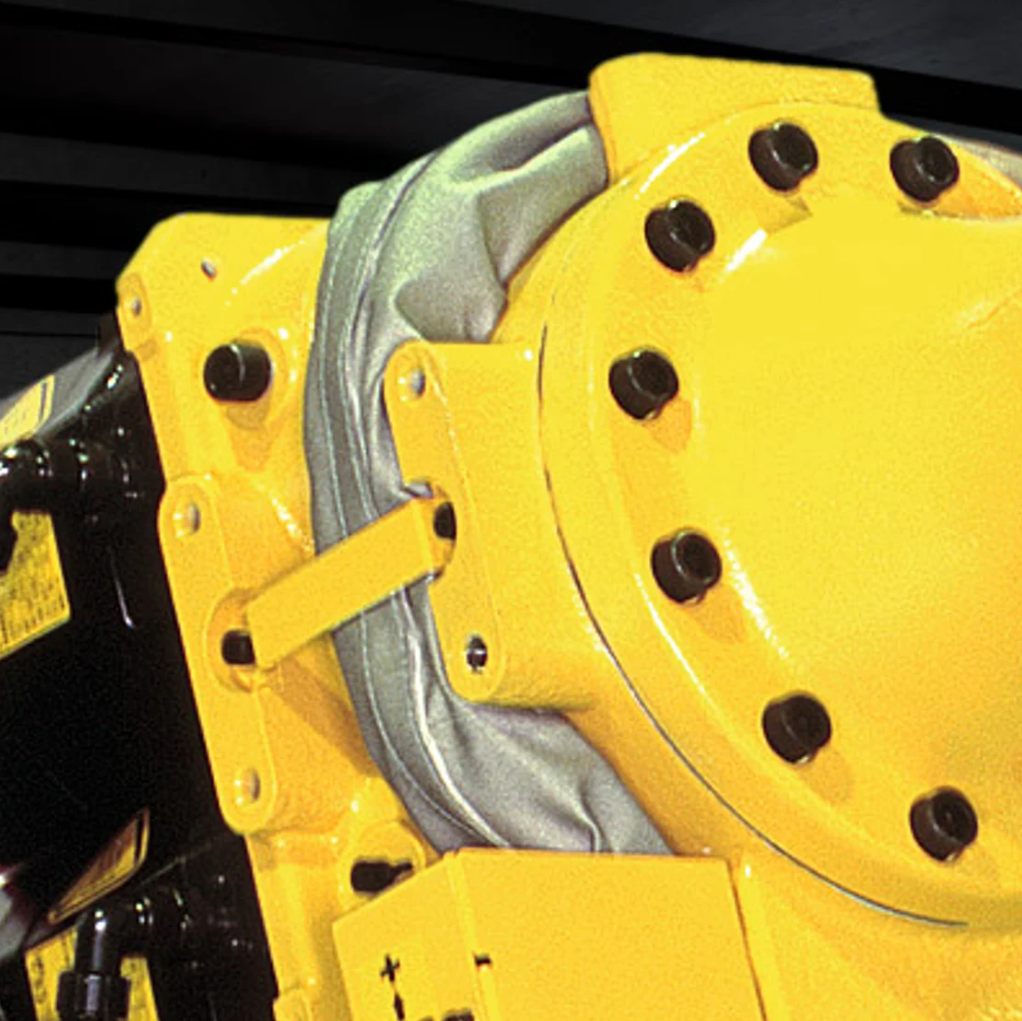

Full IP67 Protection

Technical Details

Controller Series R-30iB Plus

General Specifications

  • Axes 6

  • Max Payload 45 kg

  • Mounting Method Floor / Angle / Inverted

  • Repeatability ±0.06 mm

  • Reach 2606 mm

  • Mechanical Weight 570 kg

  • Average Power Consumption 3 kW

Motion Range

  • J1 Motion Range 360°

  • J2 Motion Range 225°

  • J3 Motion Range 440°

  • J4 Motion Range 800°

  • J5 Motion Range 250°

  • J6 Motion Range 800°

Speed

  • J1 Speed 180°/s

  • J2 Speed 180°/s

  • J3 Speed 180°/s

  • J4 Speed 250°/s

  • J5 Speed 250°/s

  • J6 Speed 360°/s

Moments (N-m) / Inertia (kg-m²)

  • J4 Moment / Inertia 206/28

  • J5 Moment / Inertia 206/28

  • J6 Moment / Inertia 127/20

Protection

  • Body Standard / Optional IP54 / IP67

  • Wrist & J3 Arm IP67
