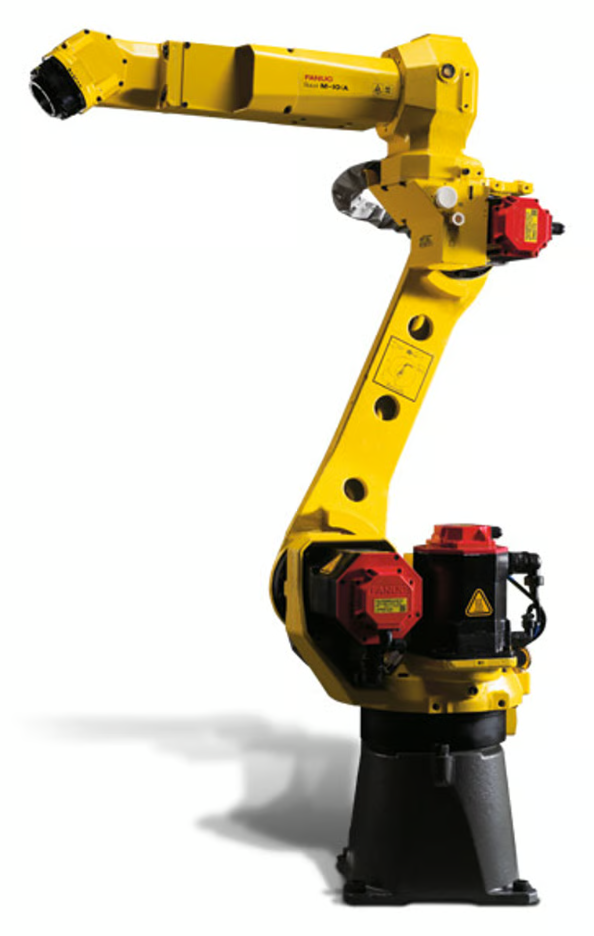

FANUC M-10iA/12
Medium payload robot, 6-axis configuration. Used for light duty applications that require longer arm reach. This model is ideal for higher payloads. Improved protection for jobs involving confined spaces or the risk of snagging is offered by its smart hollow wrist design.
Reach - 1420mm
Load capacity - 12kg
Perfect for:
Machine tending
Welding
Cutting
Material handling applications
This is a legacy product that is no longer in production.
M-10iA/12
Technical Details

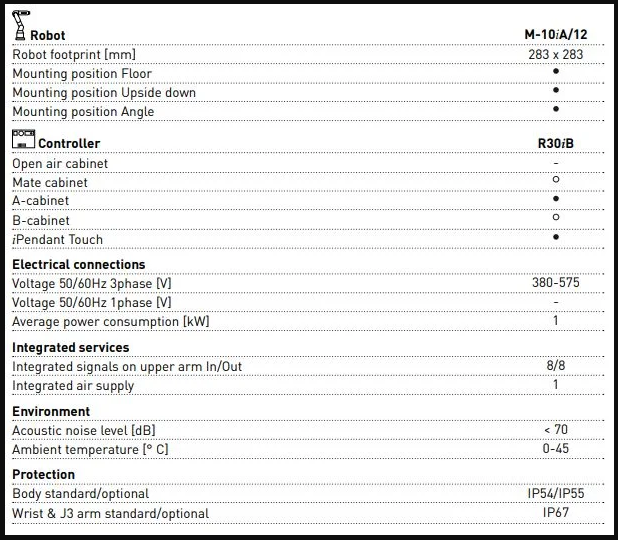

General Specifications
Axes 6
Max Payload 12 kg
Mounting Method Floor / Angle
Repeatability ±0.08 mm
Reach 1420 mm
Mechanical Weight 130 kg
Controller Series R-30iB Plus
Speed
J1 Speed 230°/s
J2 Speed 225°/s
J3 Speed 230°/s
J4 Speed 430°/s
J5 Speed 430°/s
J6 Speed 630°/s

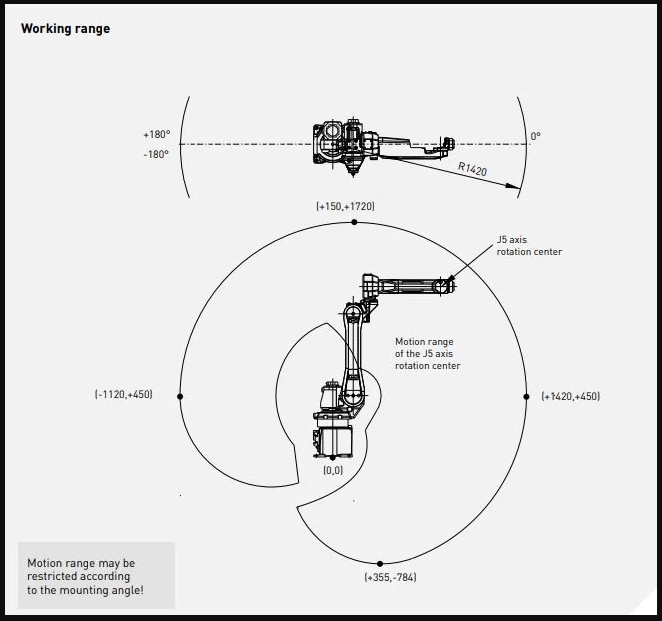

Motion Range
J1 Motion Range 340°
J2 Motion Range 250°
J3 Motion Range 445°
J4 Motion Range 380°
J5 Motion Range 380°
J6 Motion Range 720°
