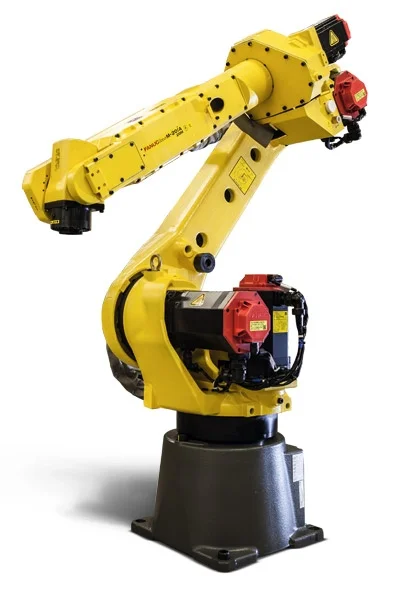

FANUC M-20iA
Medium payload robot, 6-axis configuration. Used for medium duty applications that require longer arm reach.
Reach - 1811 mm
Load capacity - 20 kg
Perfect for:
Machine tending
Welding
Cutting
Material handling applications
This is a legacy product that is no longer in production.
M-20iA

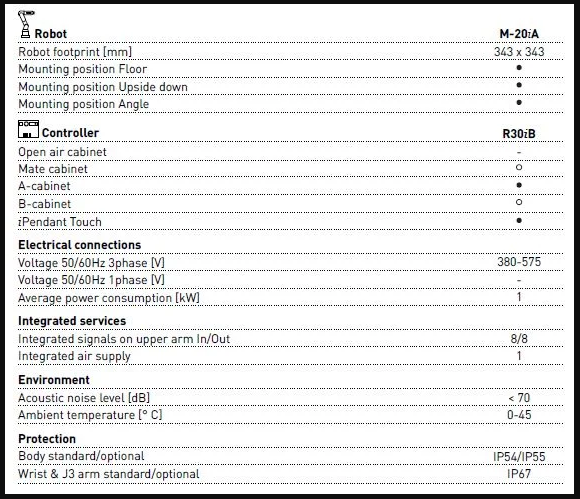

Technical Details
General Specifications
Axes 6
Max Payload 20 kg
Mounting Method Floor / Angle / Inverted
Repeatability ±0.08 mm
Reach 1811 mm
Mechanical Weight 250 kg
Controller Series R-30iB Plus
Speed
J1 Speed 195°/s
J2 Speed 175°/s
J3 Speed 180°/s
J4 Speed 360°/s
J5 Speed 360°/s
J6 Speed 550°/s
Motion Range
J1 Motion Range ±370°
J2 Motion Range ±260°
J3 Motion Range ±458°
J4 Motion Range ±400°
J5 Motion Range ±380°
J6 Motion Range ±900°
