FANUC R-1000iA/80F
Higher payload robot, 6-axis configuration. Used for medium to heavy duty applications that require normal reach, but higher payloads.
Reach - 2230mm
Load capacity - 80kg
This robot is a versatile high-speed performer, capable of fast acceleration and improved cycle times on a range of operations including welding, handling and robotic palletizing. Its 6 axes provide huge flexibility across a range of applications with standard wrist protection making it capable of working in wet and dusty environments.
Perfect for:
Machine tending
Palletizing
Material handling applications
R-1000iA/80F

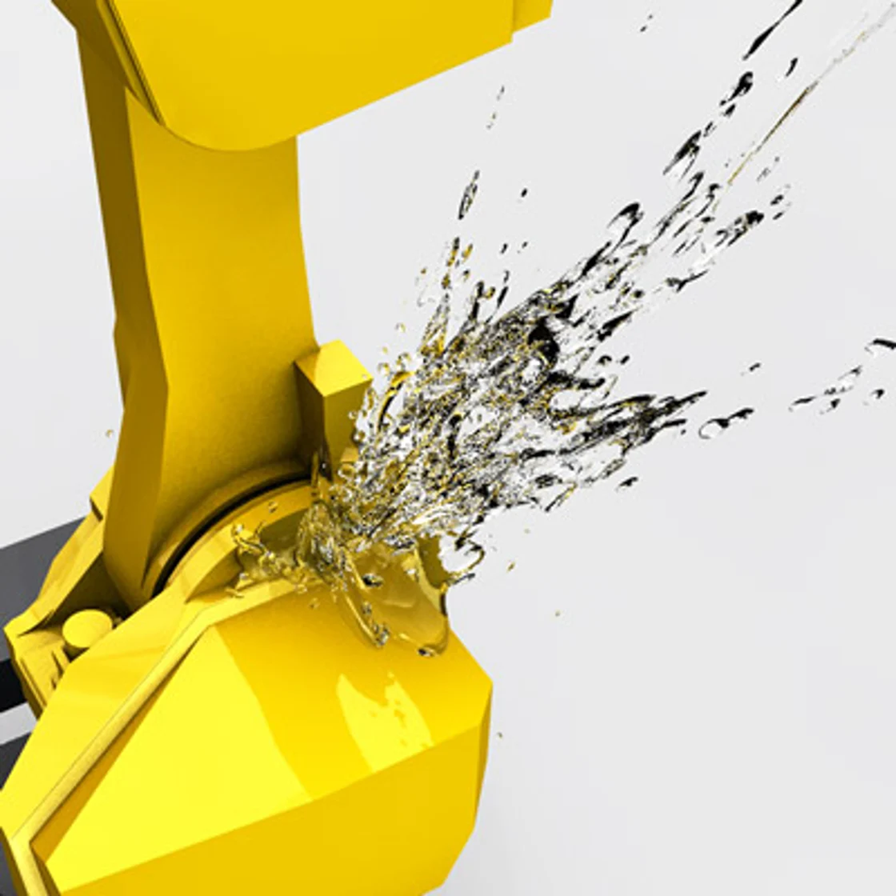

Full IP67 Protection
Technical Details
Controller Series R-30iB Plus
General Specifications
Axes 6
Max Payload 80 kg
Mounting Method Floor / Inverted
Repeatability ±0.03 mm
Reach 2230 mm
Mechanical Weight 620 kg
Average Power Consumption 3 kW
Motion Range
J1 Motion Range 360°
J2 Motion Range 245°
J3 Motion Range 360°
J4 Motion Range 720°
J5 Motion Range 250°
J6 Motion Range 720°
Speed
J1 Speed 170°/s
J2 Speed 140°/s
J3 Speed 160°/s
J4 Speed 230°/s
J5 Speed 230°/s
J6 Speed 350°/s
Moments (N-m) / Inertia (kg-m²)
J4 Moment / Inertia 380/30
J5 Moment / Inertia 380/30
J6 Moment / Inertia 200/20
Protection
Body Standard / Optional IP54 / IP56
Wrist & J3 Arm IP67
